    netPower 16P An outdoor 18 port switch with 16 Gigabit PoE-out ports and 2 SFP+. Power all your access points anywhere!

    Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.

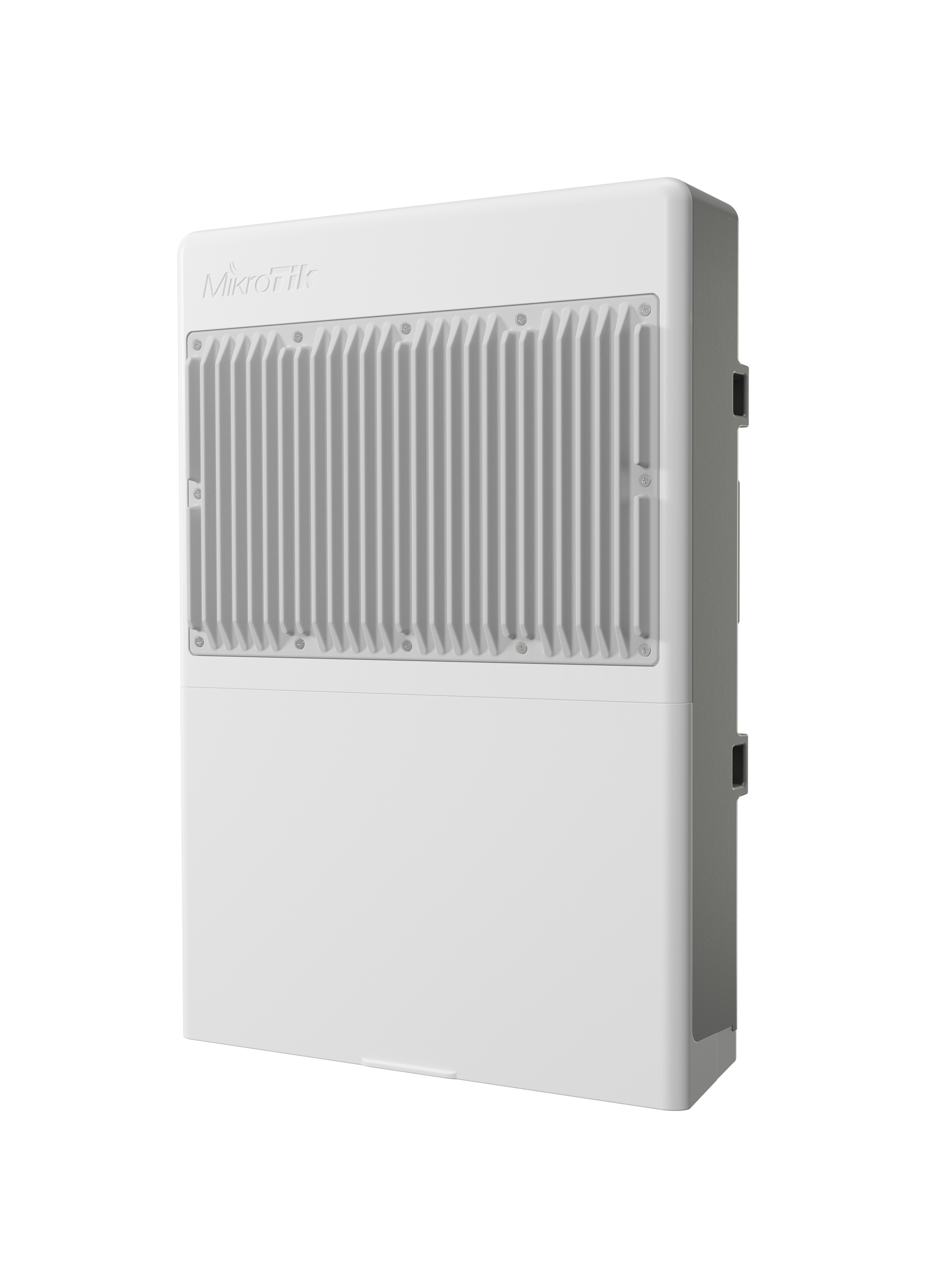

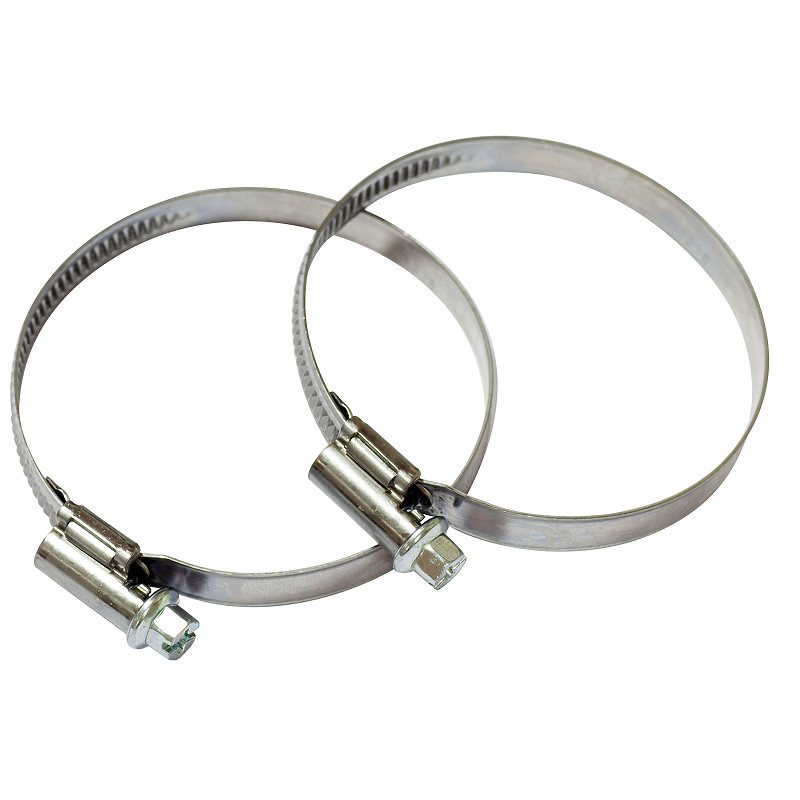

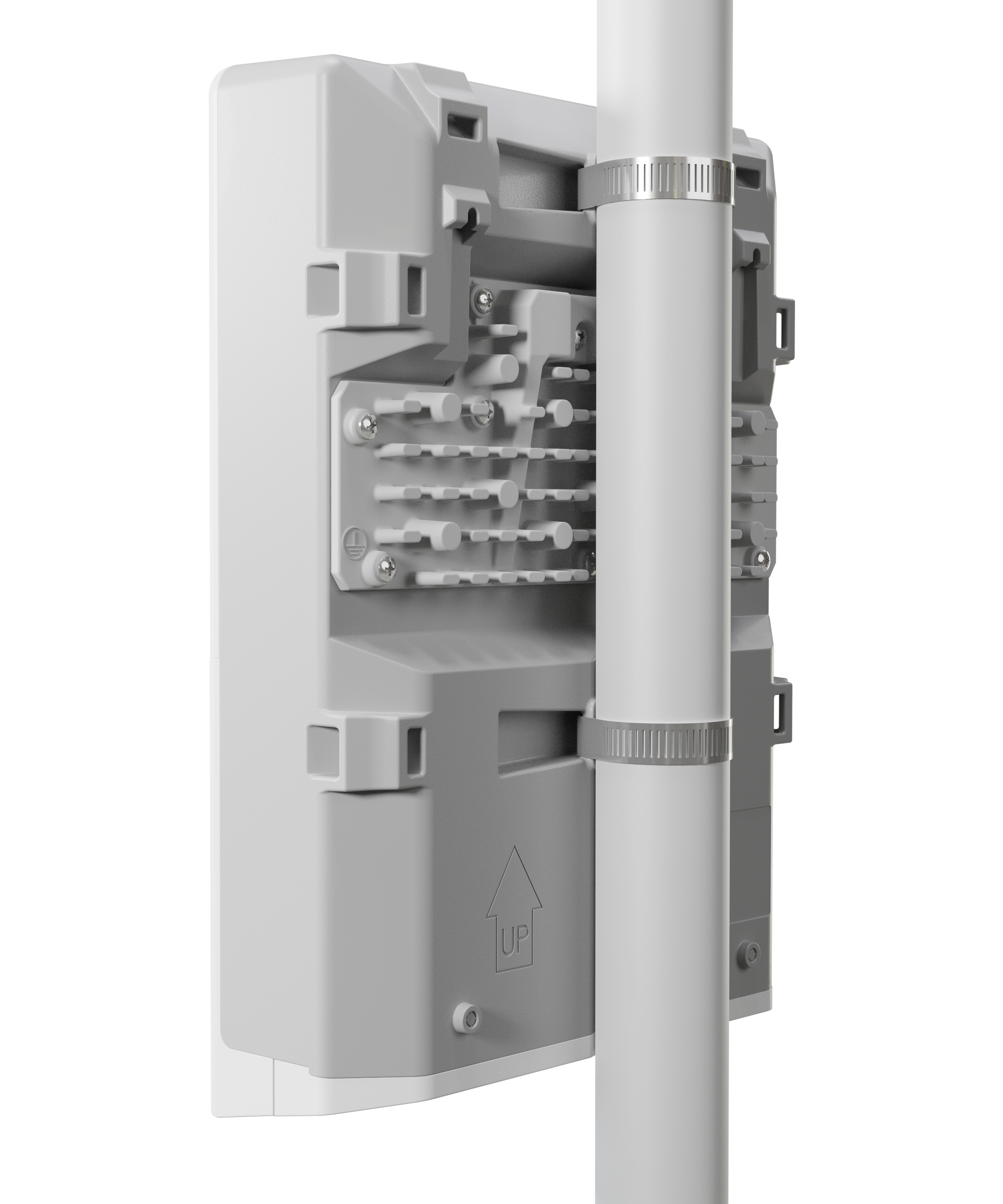

    Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps.

    netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.

    Device itself does not have an onboard voltage converter. You need 24V PSU to have 24V PoE out and/or 48V PSU to have 48V PoE out (IEEE 802.3 at/af).

    * Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, 48POW and 48V2A96W

     Send purchase questions

    Specifications

    Details
    Product code CRS318-16P-2S+OUT
    Architecture ARM 32bit
    CPU 98DX226S
    CPU core count 1
    CPU nominal frequency 800 MHz
    Switch chip model 98DX226S
    Dimensions 303 x 212 x 78 mm
    RouterOS license 5
    Operating System RouterOS / SwitchOS
    Size of RAM 256 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $279.00

    Powering

    Details
    Number of DC inputs 2 (DC jack)
    DC jack input Voltage 18-30 V / 48-57 V
    Max power consumption 316 W
    Max power consumption without attachments 16 W
    Cooling type Passive

    PoE-out

    Details
    PoE-out ports Ether1-Ether16
    PoE out 802.3af/at
    Max out per port output (input 18-30 V) 1.1 A
    Max out per port output (input 30-57 V) 0.6 A
    Max total out (A) 2.8A (18V-30V) & 1.4A (48V-57V) x2 A

    Ethernet

    Details
    10/100/1000 Ethernet ports 16
    Number of 1G Ethernet ports with PoE-out 16

    Fiber

    Details
    SFP+ ports 2

    Other

    Details
    CPU temperature monitor Yes
    Voltage Monitor Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP IP54

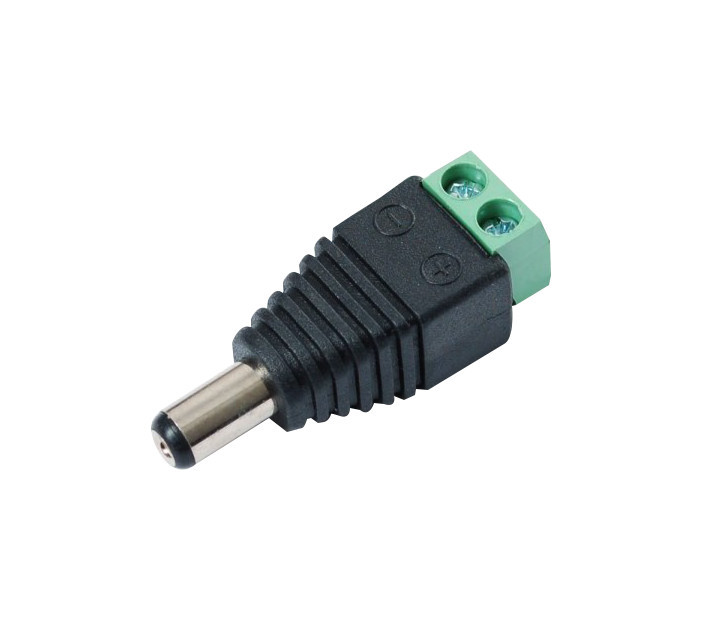

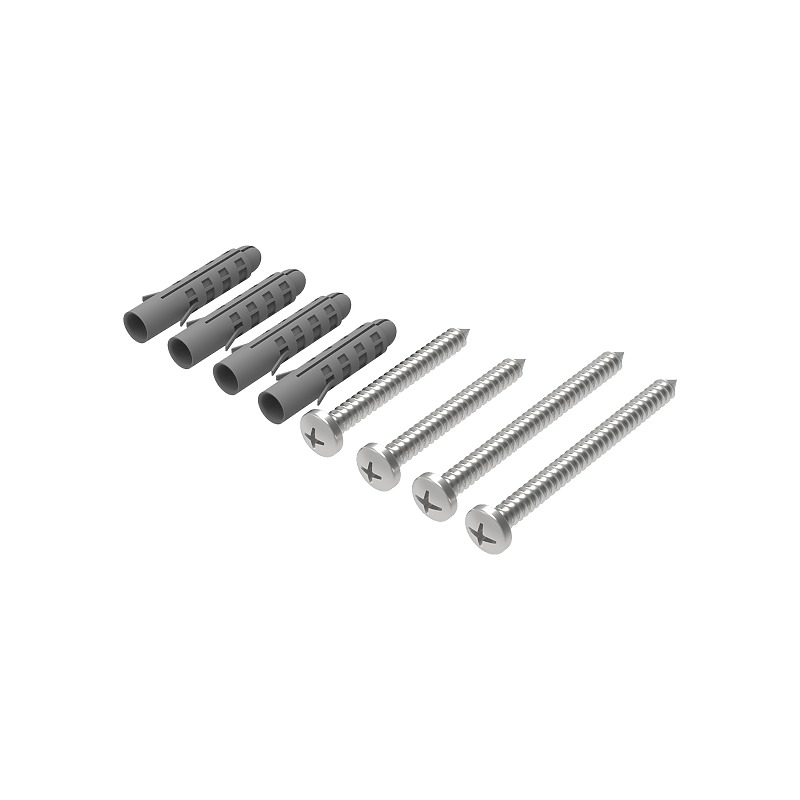

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    RouterBoot firmware Download

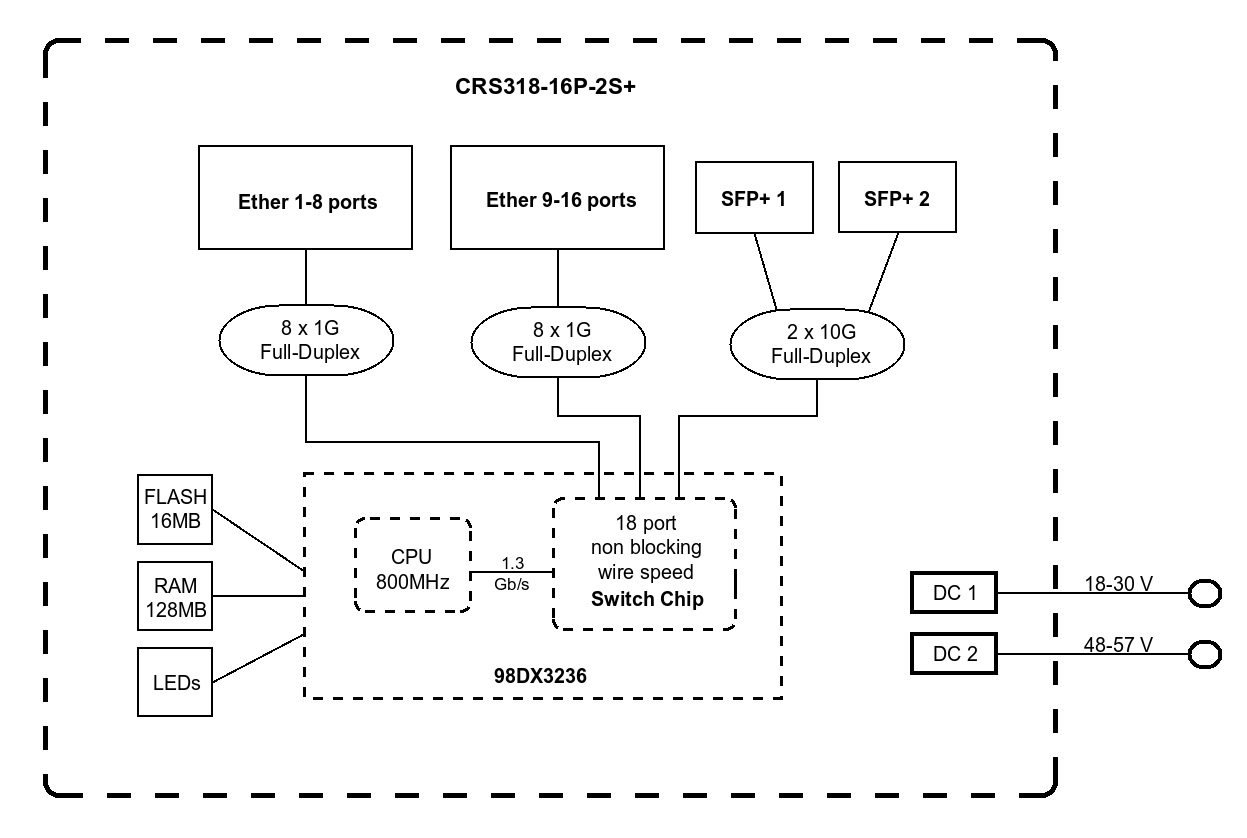

    Block DiagramOpen
    Mounting templateOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    SwOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Switching results

    CRS318-16P-2S+OUT
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Switching Non blocking Layer 2 throughput 2,925.9 35,531.9 8,458.6 34,646.6 53,571.4 27,428.6
    Switching Non blocking Layer 2 capacity 2,925.9 71,063.7 8,458.6 69,293.2 53,571.4 54,857.1
    Switching Non blocking Layer 1 throughput 2,925.9 36,000.0 8,458.6 36,000.0 53,571.4 36,000.0
    Switching Non blocking Layer 1 capacity 2,925.9 72,000.0 8,458.6 72,000.0 53,571.4 72,000.0

    Ethernet test results

    CRS318-16P-2S+OUT98DX226 all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)104,11264.2119,1487.8141,172.2
    Bridging25 bridge filter rules59,7725.059,7244.570,436.0
    Routingnone (fast path)104,11264.2129,7531.3143,573.5
    Routing25 simple queues56,7688.657,9237.265,233.4
    Routing25 ip filter rules44,1535.645,6186.848,424.8
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
